CS 5620/6620 - Fall 2025 - Rendering with Ray Tracing

Project 5 - Triangle Meshes

<< Back

Austin H Kim

Sat, Sep 27, 2025 @ 1:40 am

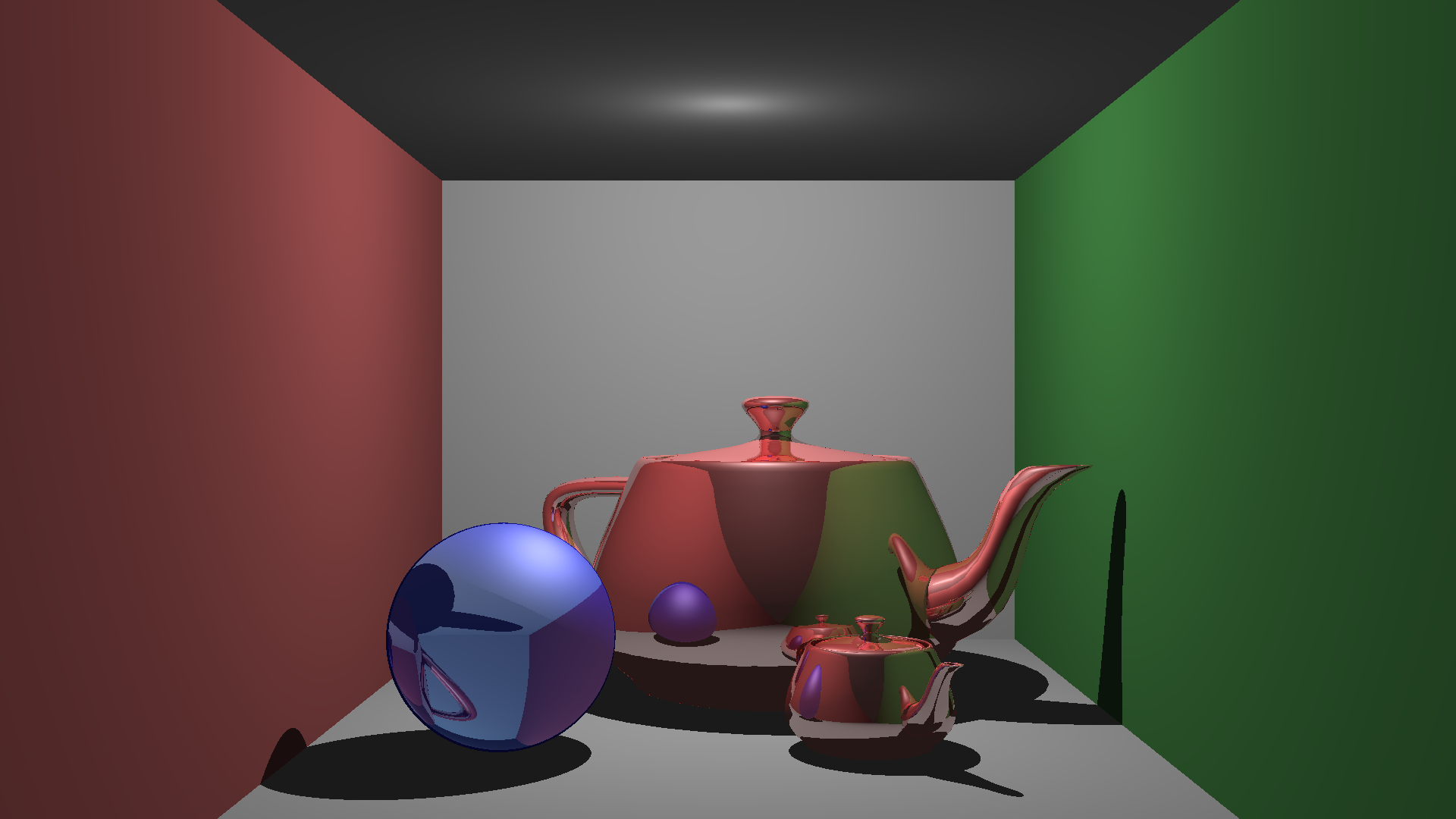

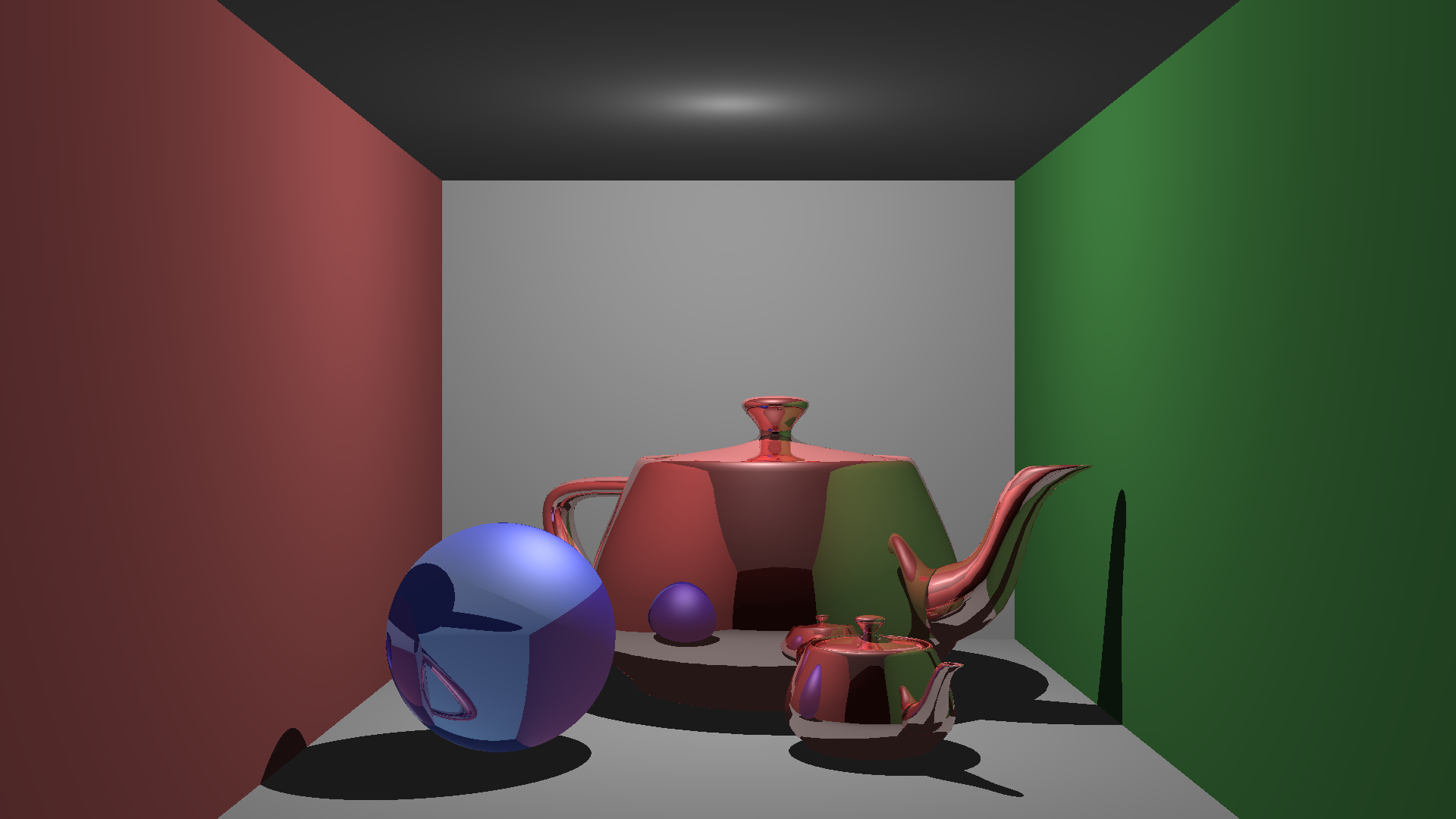

FIXED refraction. I didnt normalize a direction vector. Also made the planes finite. // Möller–Trumbore Rendering Method // 5 Bounces // Core i7-10750H // Rendering Time 00:12:53

Mon, Sep 22, 2025 @ 6:26 pm

Regarding the teapot WOOO. Just need to add a bounding box and make the planes finite. // Möller–Trumbore Rendering Method // 3 Bounces // Core i7-10750H // Rendering Time 00:12:21

Mon, Sep 22, 2025 @ 1:35 pm

Fixed shadows but holy crap the render time got longer.// 3 Bounces - Core i7-10750H - 00:17:04

Mon, Sep 22, 2025 @ 7:42 am

Just tried the Hi-Poly Teapots. Ill figure out the shadow issue.// 3 Bounces - Core i7-10750H - 00:07:29

Mon, Sep 22, 2025 @ 7:40 am

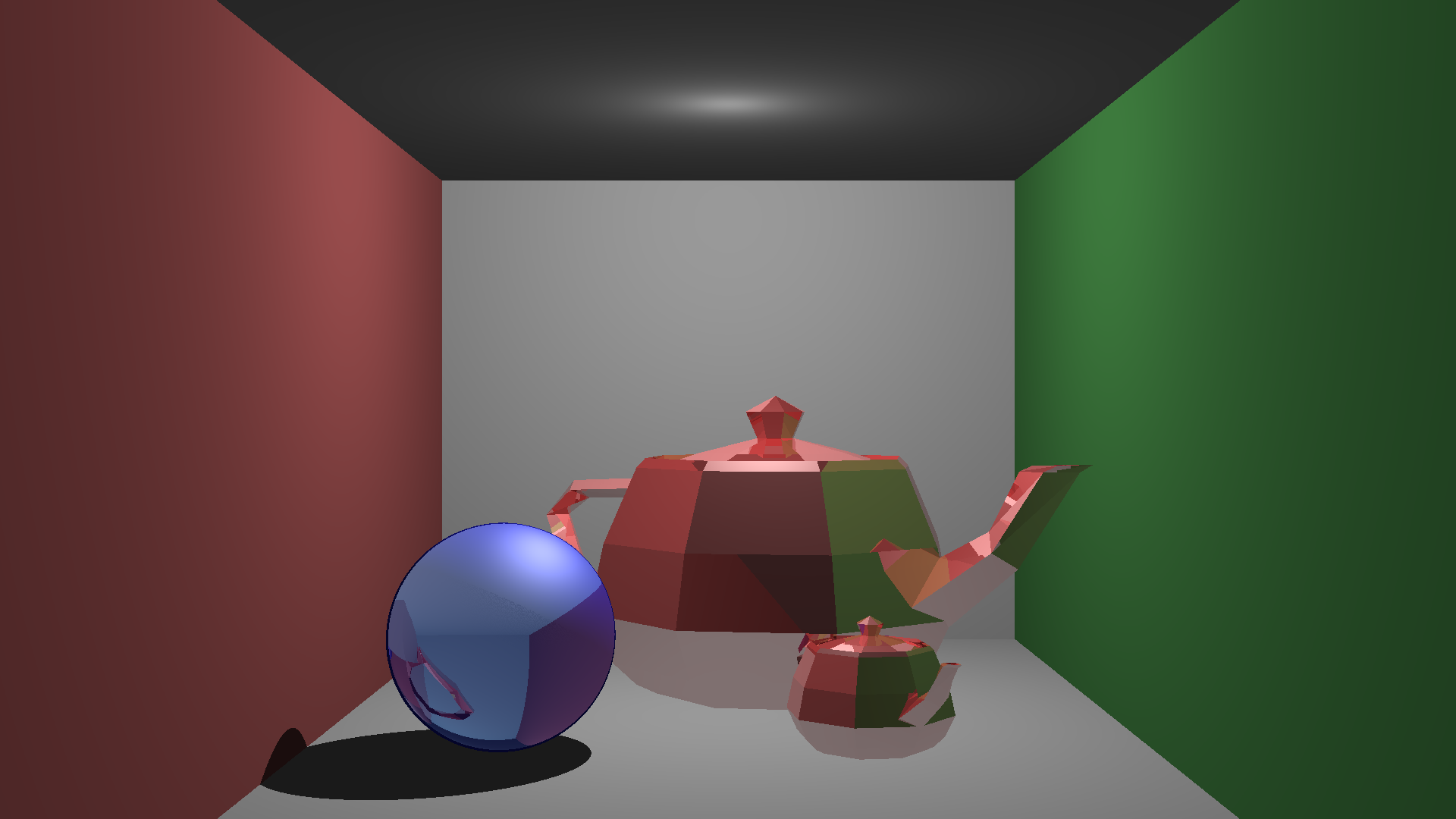

GORGEous IT HINK. Saved a lot of time by reducing 3 cross products to 1. //Render time - 00:00:15

Mon, Sep 22, 2025 @ 7:25 am

GORGEOUS BUT WHERE ARE SHADOWS??? Saved a lot of time by reducing 3 cross products to 1. I also checked for normals to make sure they are facing the correct direction //3 Bounces //Render time - 00:00:15

Mon, Sep 22, 2025 @ 7:09 am

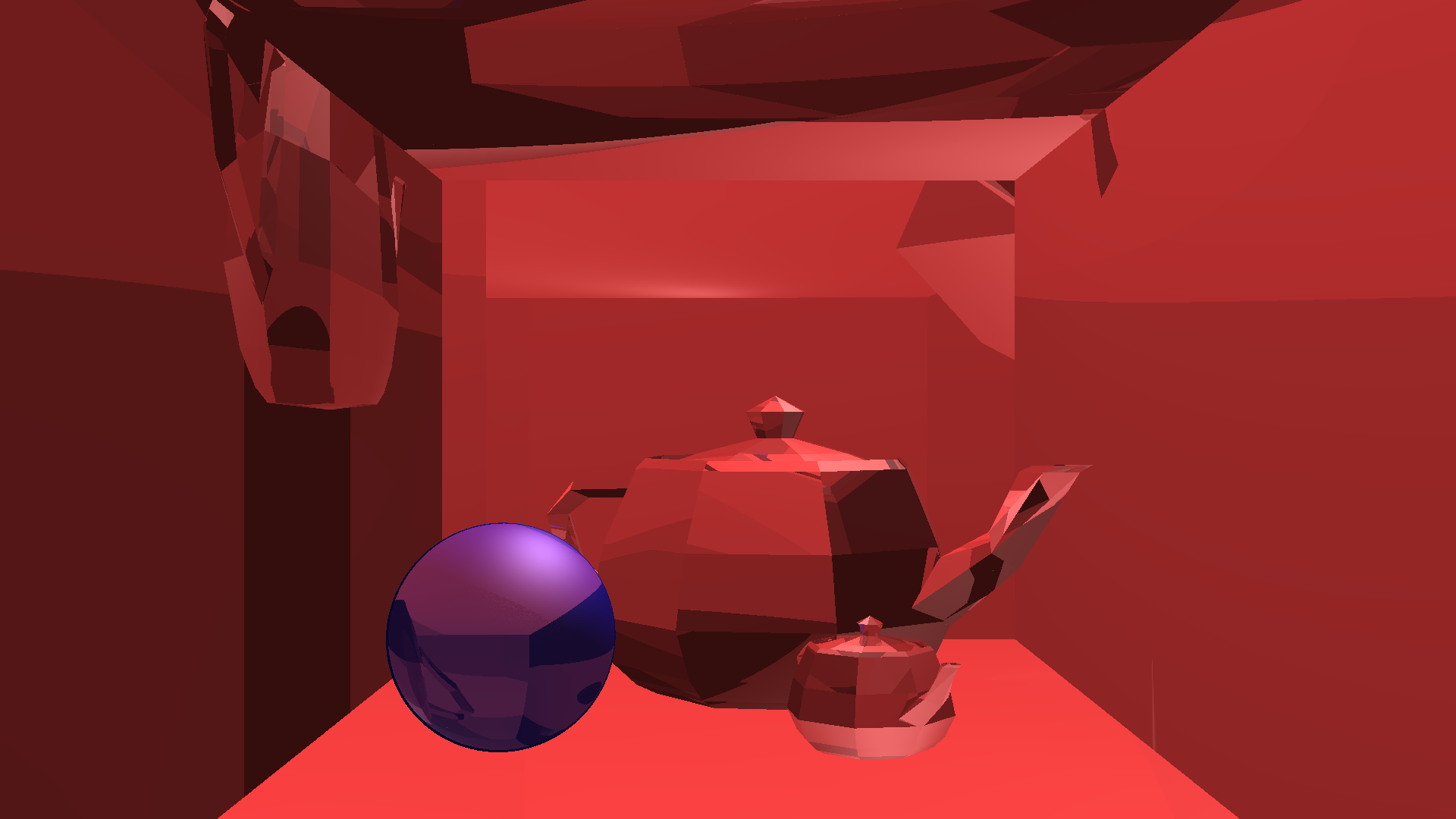

Stored the vertices properly this time. THEYRE IN THE WALLS???? //Render time - 00:00:52

Mon, Sep 22, 2025 @ 6:59 am

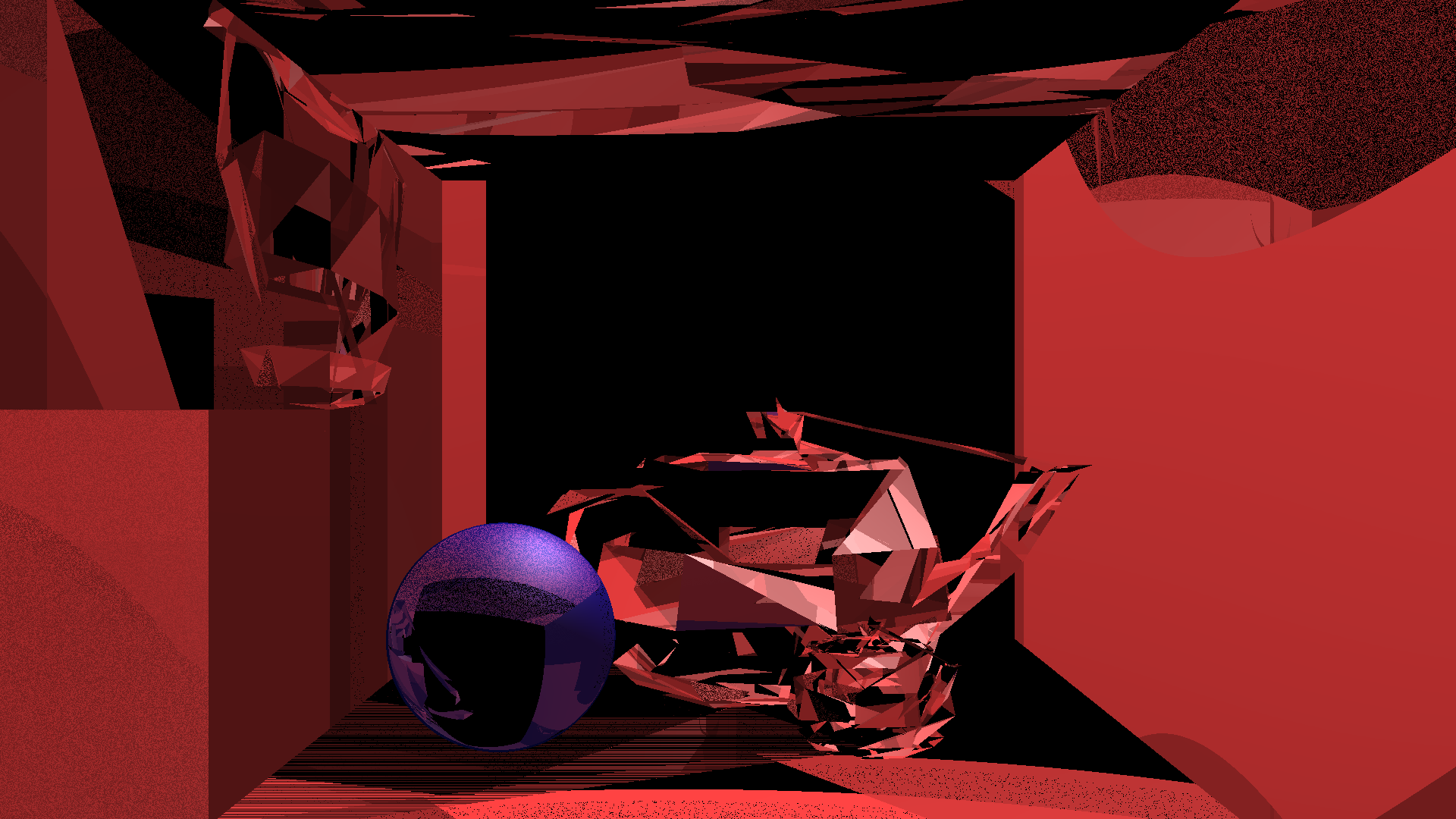

Oh this is hilarious. Used Moller-Trumbore with 3 bounces. Im definitely just reading the triangles wrong. Render time - 00:01:58

Sun, Sep 21, 2025 @ 8:42 pm

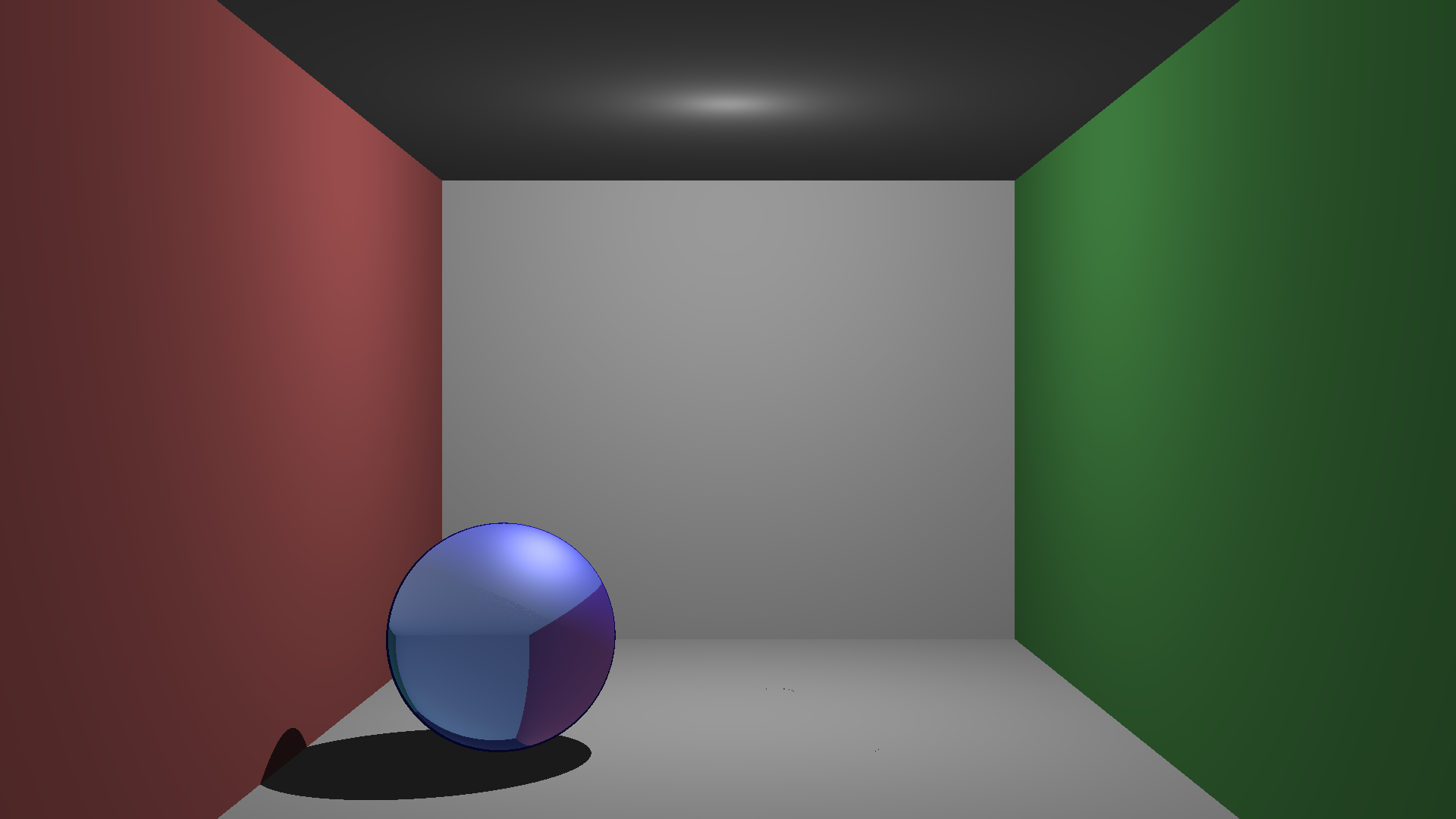

Plane Intersection ezpz. Its like a saving point b4 the final boss.
